Free test Cisco ICND2 200-105 Exam Questions and Answers

QUESTION 1
Which two are features of IPv6? (Choose two.)
A. anycast
B. broadcast
C. multicast
D. podcast
E. allcast
Correct Answer: AC



QUESTION 2
Which option is the industry-standard protocol for EtherChannel?
A. Cisco Discovery Protocol
B. PAgp
C. LACP
D. DTP
Correct Answer: C
http://www.omnisecu.com/cisco-certified-network-associate-ccna/etherchannel-pagp-and-lacp-modes.php



QUESTION 3

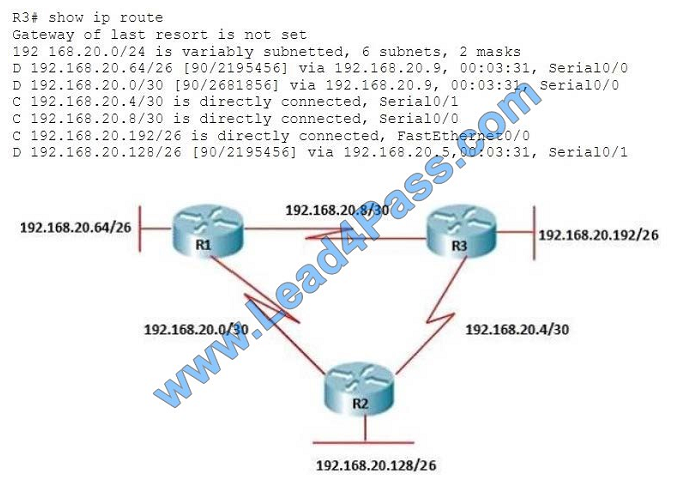

Refer to the exhibit. The company uses EIGRP as the routing protocol.
What path will packets take from a host on 192.168.10.192/26 network to a host on the LAN attached to router R1?

A. The path of the packets will be R3 to R2 to R1
B. The path of the packets will be R3 to R1 to R2
C. The path of the packets will be both R3 to R2 to R1 and R3 to R1
D. The path of the packets will be R3 to R1
Correct Answer: D
EIGRP Questions Looking at the output display above, the LAN attached to router R1 belongs to 192.168.20.64/26
subnet and learned this network via 192.168.20.9 which will be an IP address in 192.168.20.8/30 sub-network. This
means that packets destined for192.168.20.64 will be routed from R3 to R1.
Reference: http://www.9tut.net/icnd2/eigrp-questions http://www.orbitco-ccna-pastquestions.com/CCNA—EIGRP-Common-Question.php



QUESTION 4

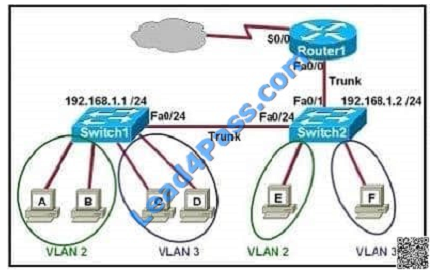

Refer to the exhibit.
Which two statements are true about interVLAN routing in the topology that is shown in the exhibit? (Choose two.)

A. Host E and host F use the same IP gateway address.
B. Router1 and Switch2 should be connected via a crossover cable.
C. Router1 will not play a role in communications between host A and host D.
D. The FastEthernet 0/0 interface on Router1 must be configured with subinterfaces.
E. Router1 needs more LAN interfaces to accommodate the VLANs that are shown in the exhibit.
F. The FastEthernet 0/0 interface on Router1 and the FastEthernet 0/1 interface on Switch2 trunk ports must be
configured using the same encapsulation type.
Correct Answer: DF
http://www.cisco.com/en/US/tech/tk389/tk815/technologies_configuration_eample09186a00800 949fd.shtml



QUESTION 5

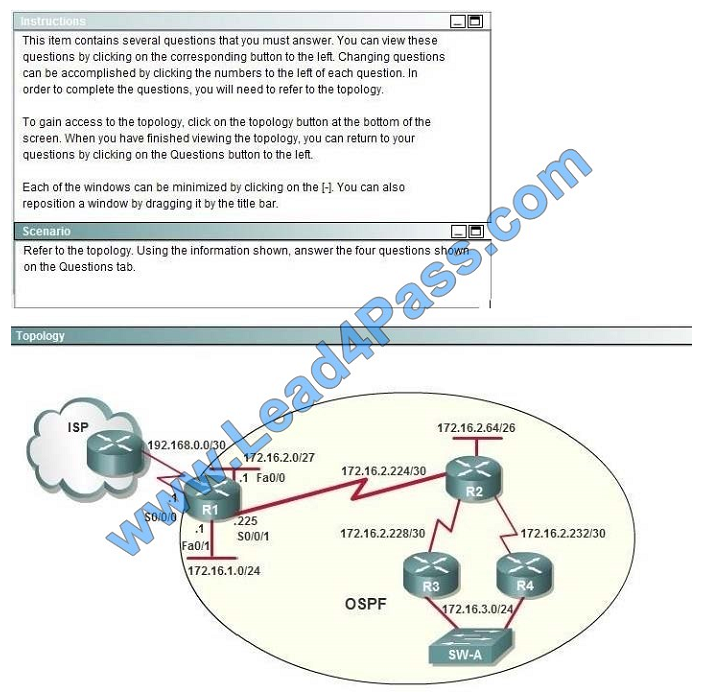

Hotspot Question

After the network has converged, what type of messaging, if any, occurs between R3 and R4?
A. No messages are exchanged.
B. Hellos are sent every 10 seconds.
C. The full database from each router is sent every 30 seconds.
D. The routing table from each router is sent every 60 seconds.
Correct Answer: B
HELLO, messages are used to maintain adjacent neighbors so even when the network is converged, hellos are still
exchanged. On broadcast and point-to-point links, the default is 10 seconds, on NBMA the default is 30 seconds.



QUESTION 6

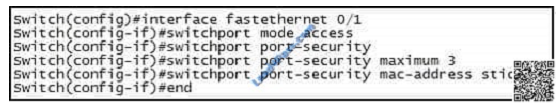

Refer to the exhibit.
Which of these correctly describes the results of the port security violation of an unknown packet?

A. port enabled; unknown packets dropped; no SNMP or Syslog messages
B. port enabled; unknown packets dropped; SNMP or Syslog messages
C. port disabled; no SNMP or Syslog messages
D. port disabled; SNMP or Syslog messages
Correct Answer: D
Configuring Port Security
http://packetlife.net/blog/2010/may/3/port-security/

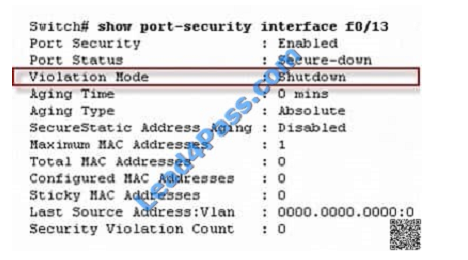

We can view the default port security configuration with show port-security:

http://www.ciscopress.com/articles/article.asp?p=1722561 Switchport Security Violations The second piece of
switch port port-security that must be understood is a security violation including what it is what causes it and what the
different violation modes that exist. A switch port violation occurs in one of two situations: When the maximum number of
secure MAC addresses have been reached (by default, the maximum number of secure MAC addresses per switch port is
limited to 1) An address learned or configured on one secure interface is seen on another secure interface in the same
VLAN The action that the device takes when one of these violations occurs can be configured: Protect–This mode
permits traffic from known MAC addresses to continue to be forwarded while dropping traffic from unknown MAC
addresses when over the allowed MAC address limit. When configured with this mode, no notification action is taken
when traffic is dropped. Restrict–This mode permits traffic from known MAC addresses to continue to be forwarded
while dropping traffic from unknown MAC addresses when over the allowed MAC address limit. When configured with
this mode, a syslog message is logged, a Simple Network Management Protocol (SNMP) trap is sent, and a violation counter is incremented when traffic is dropped. Shutdown–This mode is the default violation mode; when in this mode,
the switch will automatically force the switch port into an error-disabled (err-disable) state when a violation occurs. While
in this state, the switch port forwards no traffic. The switch port can be brought out of this error-disabled state by issuing
the errdisable recovery cause CLI command or by disabling and re-enabling the switch port. Shutdown VLAN–This
mode mimics the behavior of the shutdown mode but limits the error-disabled state the specific violating VLAN.



QUESTION 7

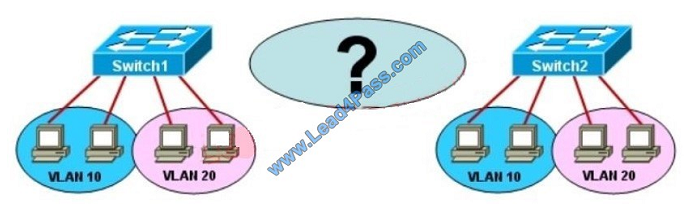

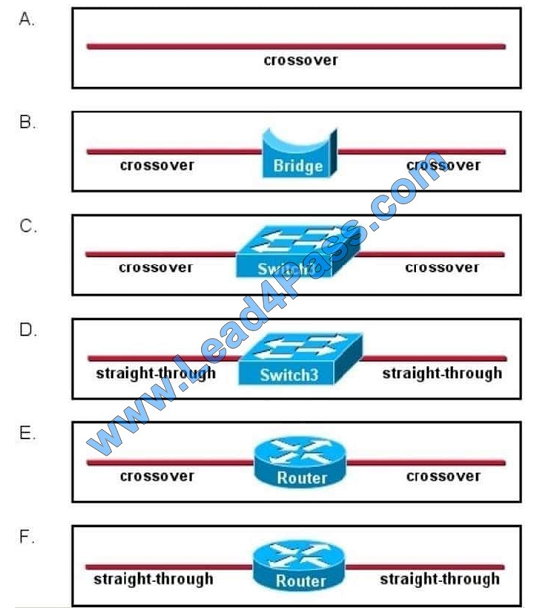

Refer to the exhibit. How should Switch1 and Switch2 be connected in order to allow full communication between all of
the hosts?

A. Exhibit A
B. Exhibit B
C. Exhibit C
D. Exhibit D
E. Exhibit E
F. Exhibit F
Correct Answer: F



QUESTION 8
Which two benefits of implementing a full mesh wan topology are true? (Choose two)
A. redundancy
B. reduced jitter
C. increased latency
D. improved scalability
E. reliability
Correct Answer: AD



QUESTION 9

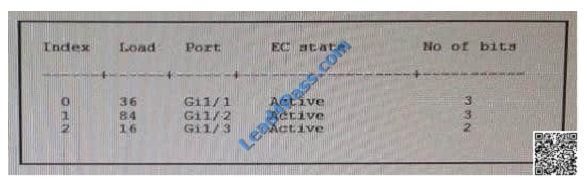

Refer to the exhibit. While troubleshooting a switch, you executed the show interface port-channel 1 EtherChannel
command and it returned this output. Which information is provided by the Load value?

A. the percentage of use of the link
B. the preference of the link
C. the session count of the link
D. the number source-destination pairs on the link
Correct Answer: D



QUESTION 10
Which function does traffic shaping perform?
A. it buffers traffic without queuing it
B. it queues traffic without buffering it
C. it drops packets to control the output rate
D. it buffers and queues excess packets
Correct Answer: D



QUESTION 11
What is the result of issuing the frame-relay map IP 192.168.1.2 202 broadcast command?
A. defines the destination IP address that is used in all broadcast packets on DCLI 202
B. defines the source IP address that is used in all broadcast packets on DCLI 202
C. defines the DLCI on which packets from the 192.168.1.2 IP address are received
D. defines the DLCI that is used for all packets that are sent to the 192.168.1.2 IP address
Correct Answer: D

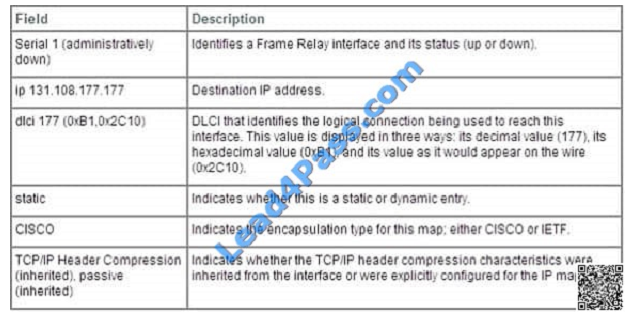

frame-relay map IP 192.168.1.2 202 command statically defines a mapping between a network layer address and a
DLCI. The broadcast option allows multicast and broadcast packets to flow across the link. The command frame-relay
map IP
192.168.1.2 202 broadcast means to map the distal IP 192.168.1.2 202 to the local DLCI. When the “broadcast”
the keyword is included, it turns Frame Relay network as a broadcast network, which can forward broadcasts.
http://www.cisco.com/en/US/docs/ios/wan/command/reference/wan_f2.html#wp1012264





QUESTION 12

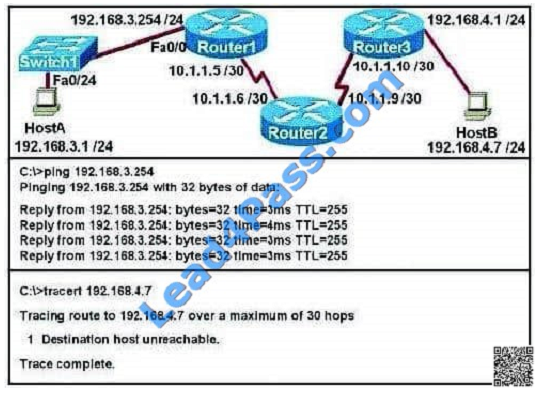

Refer to the exhibit. A technician is testing connection problems in the internetwork. What is the problem indicated by
the output from HostA?

A. The routing on Router2 is not functioning properly.
B. An access list is applied to an interface of Router3.
C. The Fa0/24 interface of Switch1 is down.
D. The gateway address of HostA is incorrect or not configured.
Correct Answer: D



QUESTION 13
Which two commands debug a PPPoE connection that has failed to establish? (Choose two.)
A. Debug PPP compression
B. Debug PPP negotiation
C. Debug dialer events
D. Debug PPP cbcp
E. Debug dialer packet
Correct Answer: BE
